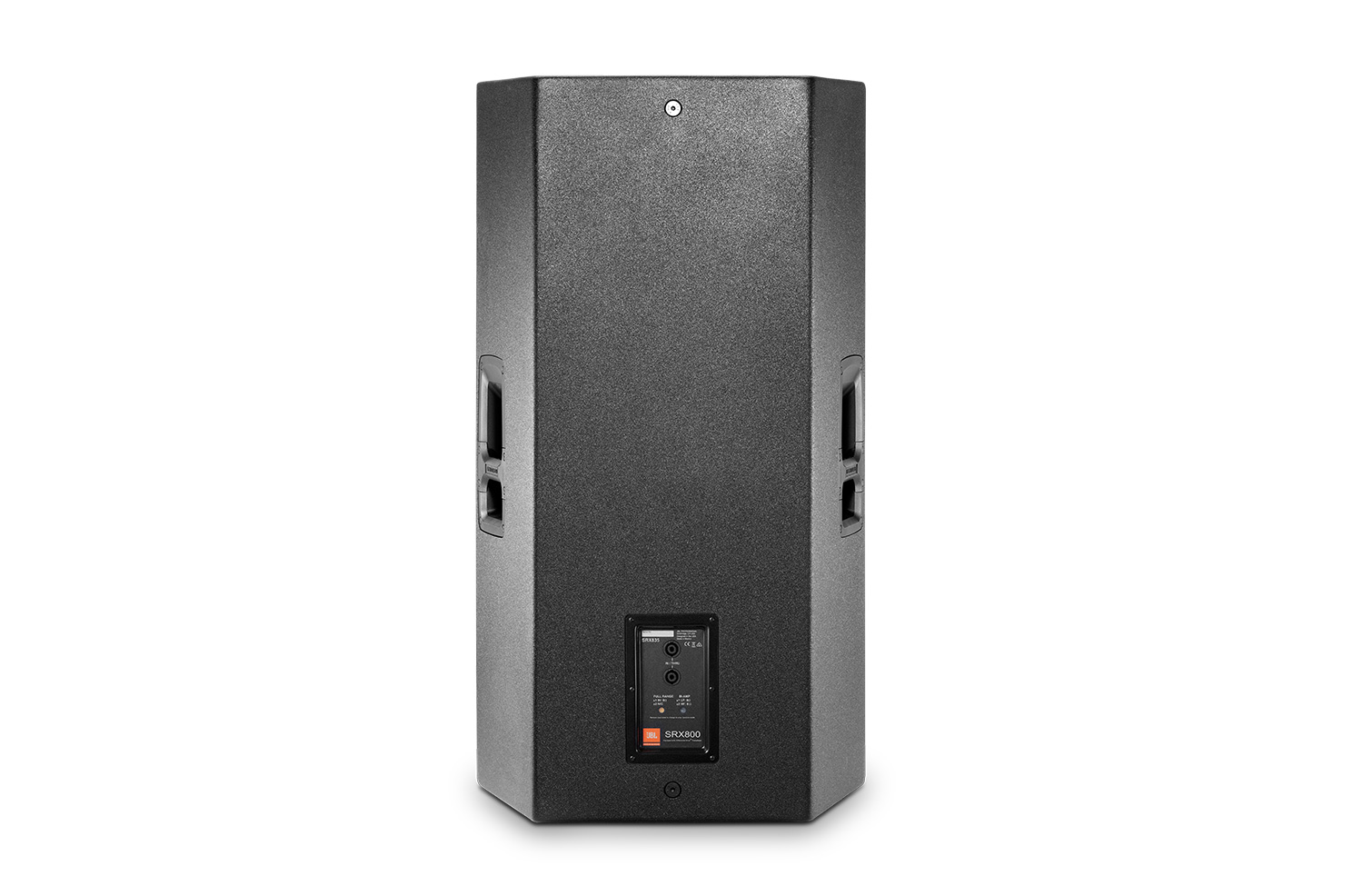

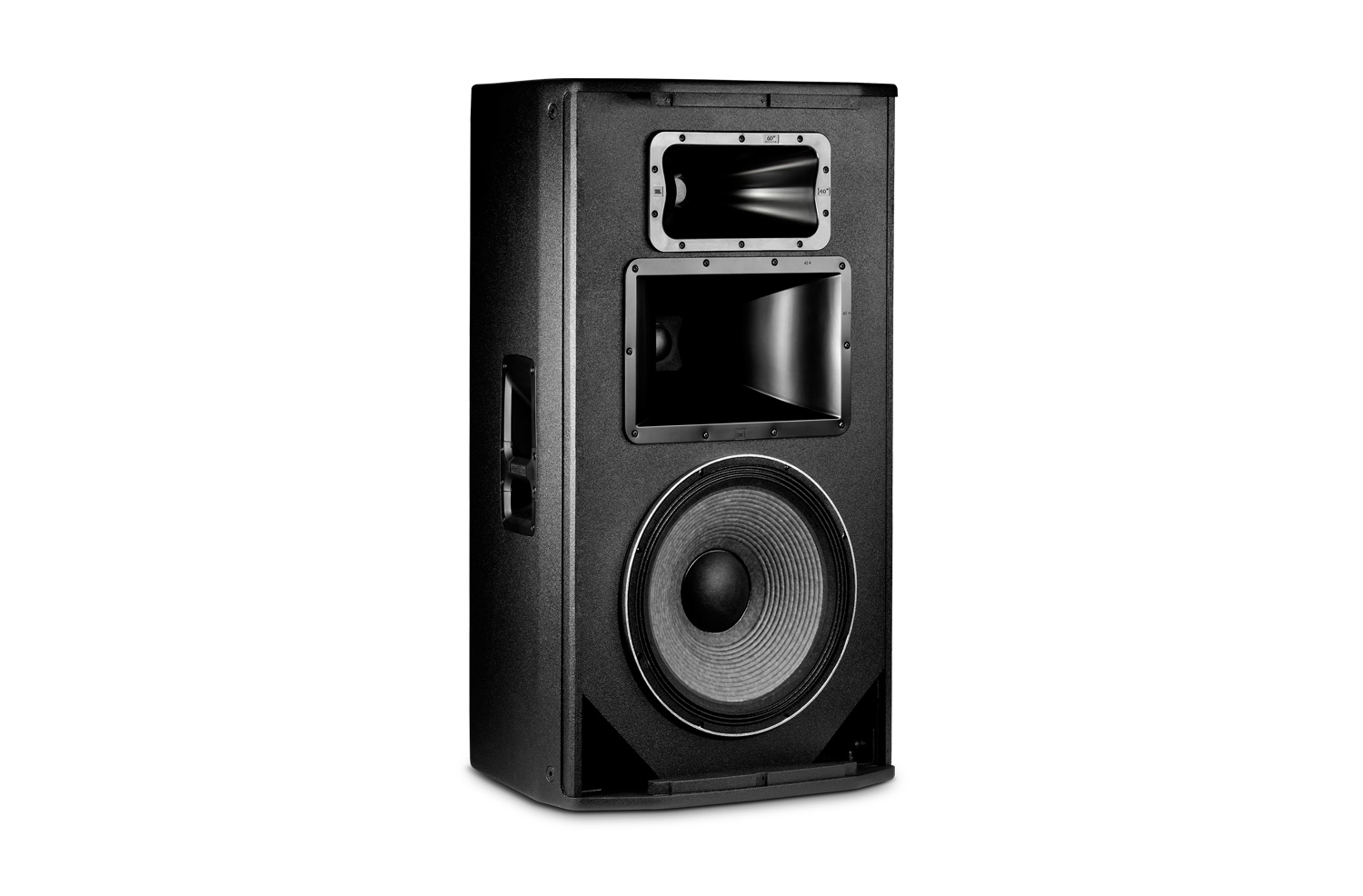

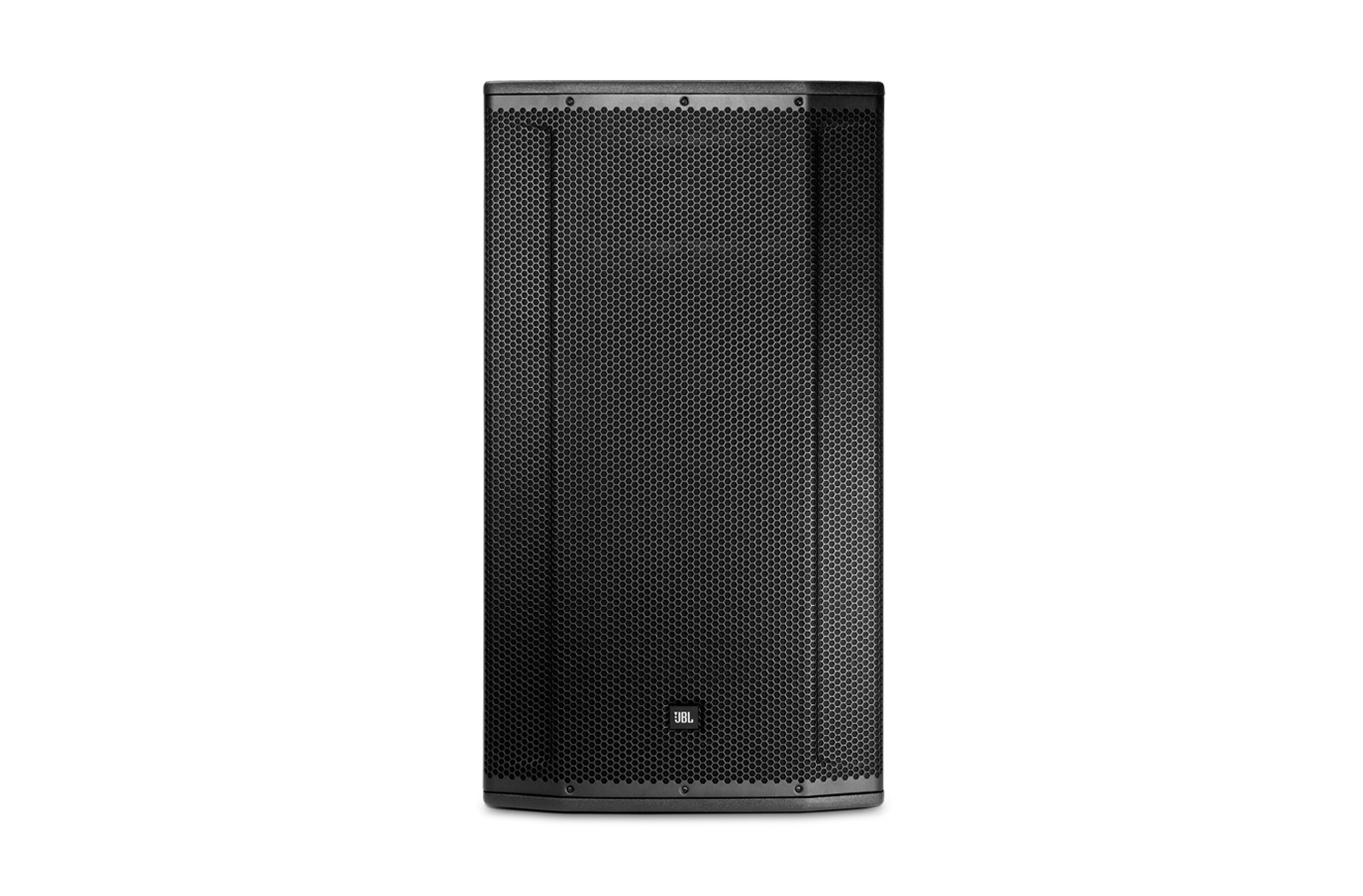

JBL SRX835

系统类型 Passive 15”, three-way, bass-reflex

Maximum SPL Output 124dB (Continuous), 130dB (Peak)

频率范围 (-10dB) 32hz - 20khz

Frequency Response (-3 dB) 43Hz - 20Hz

灵敏度 95dB

系统额定功率 3200W Peak, 1600W Program, 800W Continuous

标称阻抗 8 Ohm

输入通道 NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)

Operational Modes Passive/Bi-Amp

低频驱动单元 2275F

MF Driver 2107H

HF 驱动程序 2432H

覆盖范围 60 x 40

分频点 330hz & 2.4khz

Enclosure 18mm Duraflex coated plywood

Suspension/Mounting Single 36mm pole socket, 12 x M10 Suspension points

Handles 2

外观颜色 Obsidian Duraflex™ finish

网罩 Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing

尺寸（高 x 宽 x 厚） 476mm x 544mm x 984mm (18.74in x 21.4in x 38.74in)

重量 95.0 lbs (43.1kg)
