JBL SRX812P

系统类型 Self powered 12”, two-way, bass-reflex

Maximum SPL (1m) 136 dB

频率范围 (-10dB) 40 Hz - 21 kHz

Frequency Response (±3 dB) 48 Hz - 20 kHz

覆盖范围 90° x 50°

Amplifier Design Class D

额定功率 2000 W Peak

尺寸（高 x 宽 x 厚） 429mm x 415mm x 638mm (16.87in x 16.31in x 25.11in)

Net Weight (each) 26.4 kg (58 lb)

EQ 20 parametric EQ's, speaker delay, and 50 available slots for presets

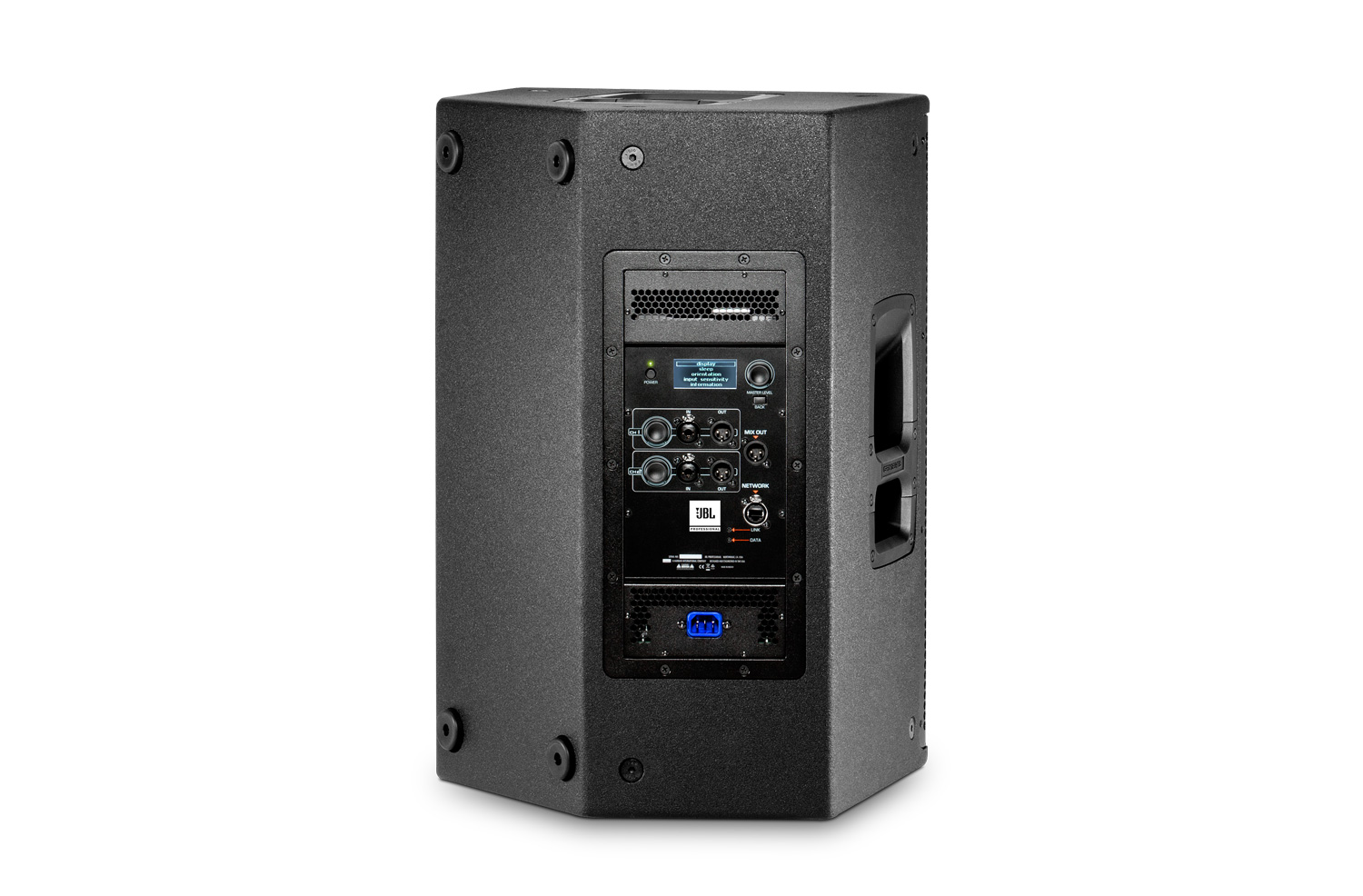

输入通道 Neutrik ¼ - XLR input; Neutrik XLR Output

输出 2 x XLR

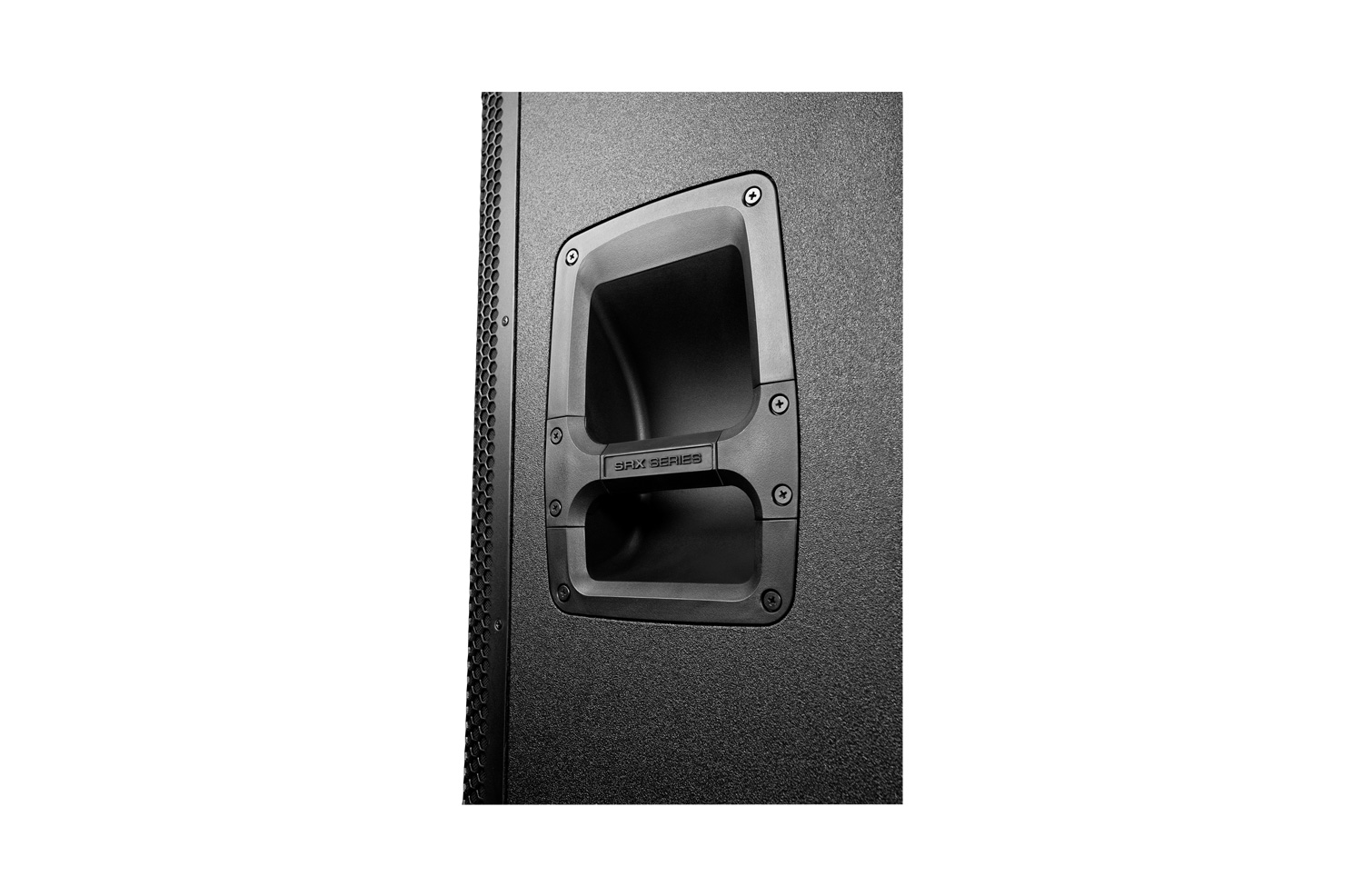

Enclosure 18 mm, 11-ply Finnish birch plywood; black DuraFlex™ finish; integral recessed handles

标称阻抗 NA - amplification is integrated

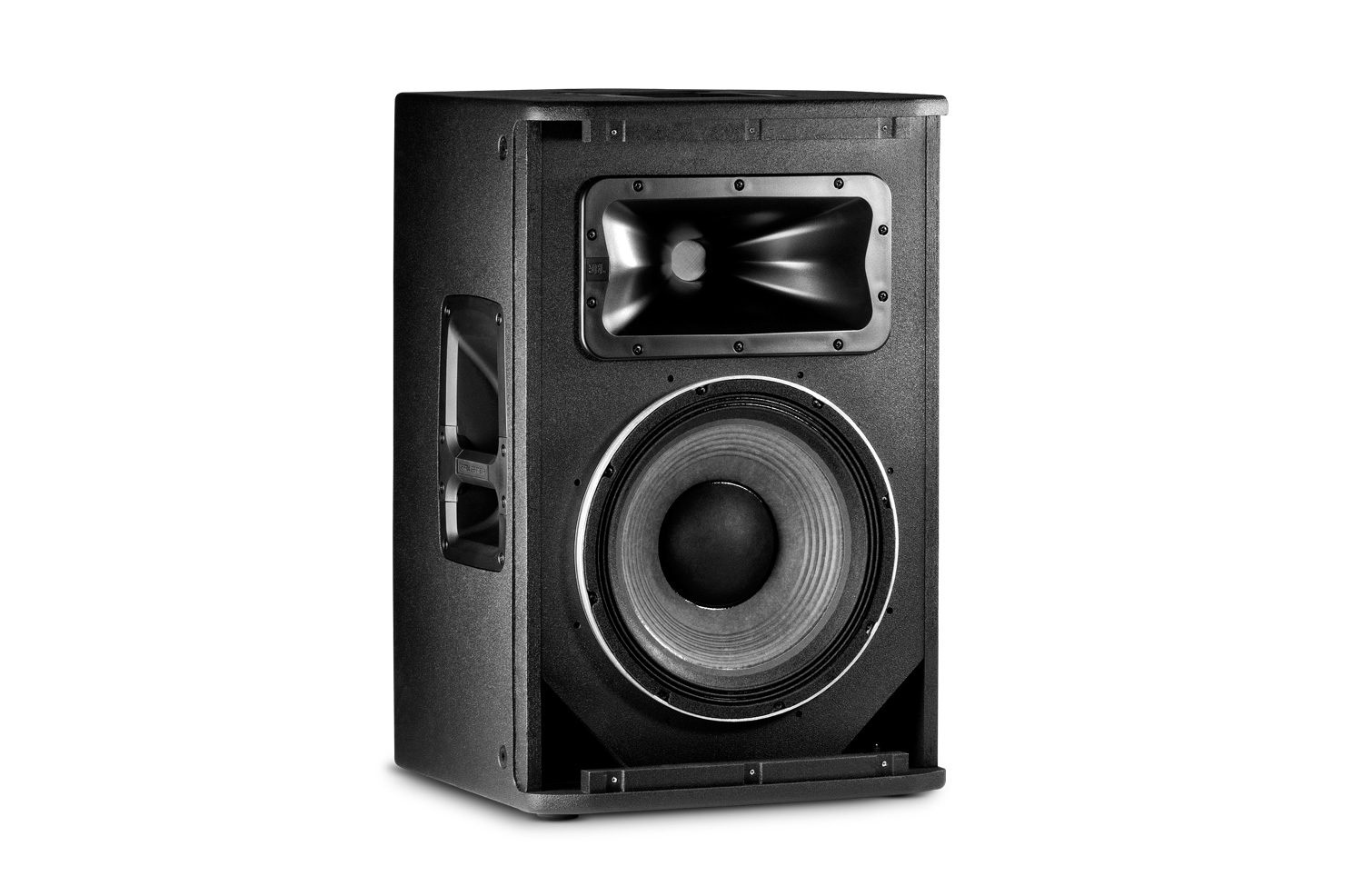

低频驱动单元 1 x 2272F, Differential Drive®, 12" diameter

HF 驱动程序 1 x 2432H compression driver, neodymium 76mm (3 in) diameter voice coil

Suspension / Mounting Dual 36 mm pole socket, 12 x M10 suspension points
