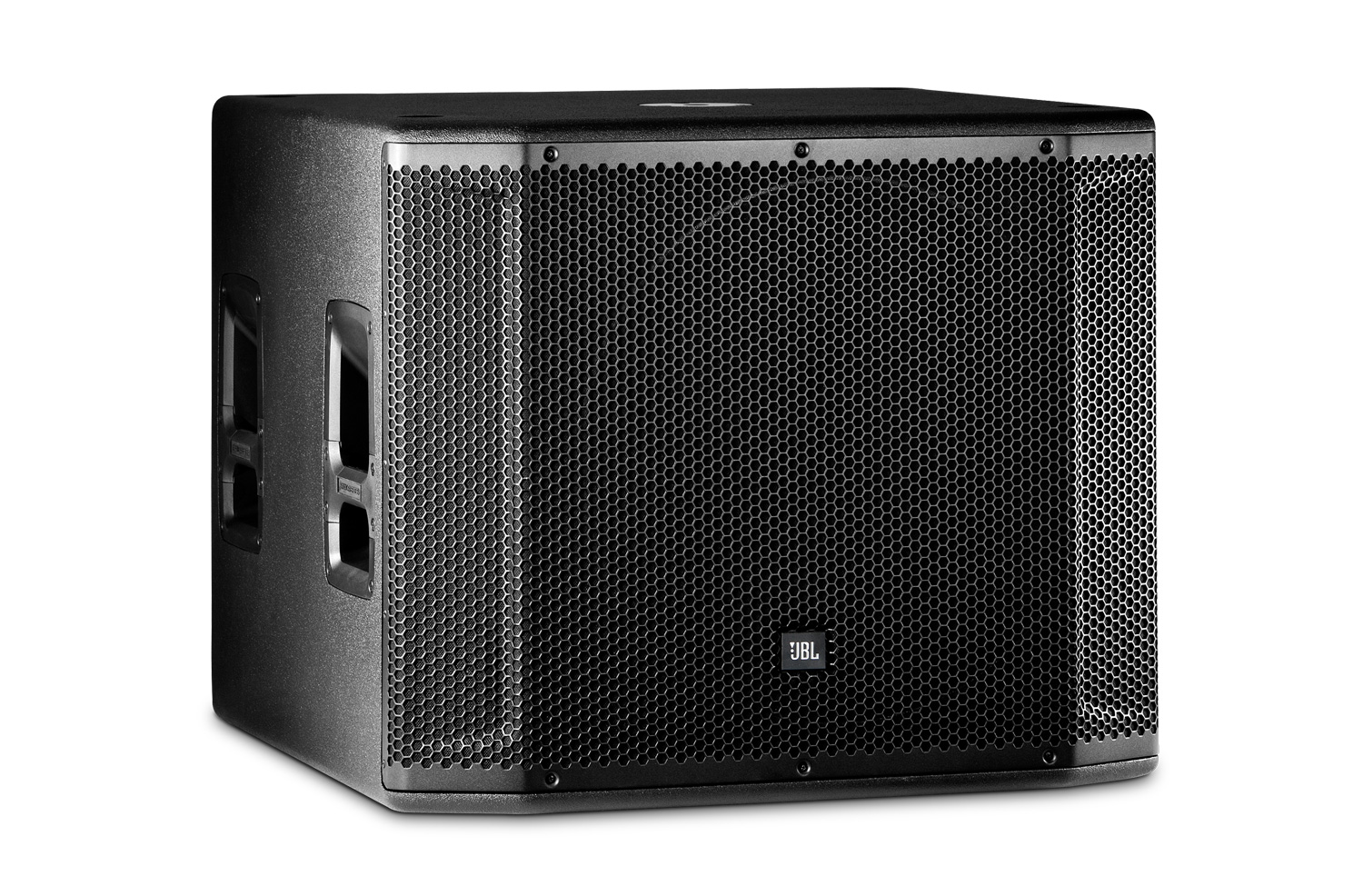

JBL SRX818S

系统类型 Passive 18”, subwoofer system

Maximum SPL Output 123dB (Continuous), 129dB (Peak)

频率范围 (-10dB) 28hz - 150hz

Frequency Response (-3 dB) 45hz - 150hz

灵敏度 95dB

系统额定功率 2400W Peak , 1200W Program, 600W Continuous

标称阻抗 8 Ohm

输入通道 NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)

Operational Modes Passive

低频驱动单元 2279H

分频点 80hz

Enclosure 18mm Duraflex coated plywood

Suspension/Mounting M20 Threaded Pole Mount

Casters Accepts JBL WK-4S Kit

Handles 4

外观颜色 Obsidian Duraflex™ finish

网罩 Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing

尺寸（高 x 宽 x 厚） 683mm x 684mm x 575mm (26.89in x 26.92in x 22.62in)

重量 78.0 lbs (35.4kg)

运输重量 88 lbs (40.2kg)
