JBL SRX815

系统类型 Passive 15”, two-way, bass-reflex

Maximum SPL Output 124dB (Continuous), 130dB (Peak)

频率范围 (-10dB) 41hz - 20khz

Frequency Response (-3 dB) 56hz - 20khz

灵敏度 95dB

系统额定功率 3200W Peak, 1600W Program, 800W Continuous

标称阻抗 8 Ohm

输入通道 NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)

Operational Modes Passive/Bi-Amp

低频驱动单元 2275H

HF 驱动程序 2432H

覆盖范围 90 x 50

分频点 1.9khz

Enclosure 18mm Duraflex coated plywood

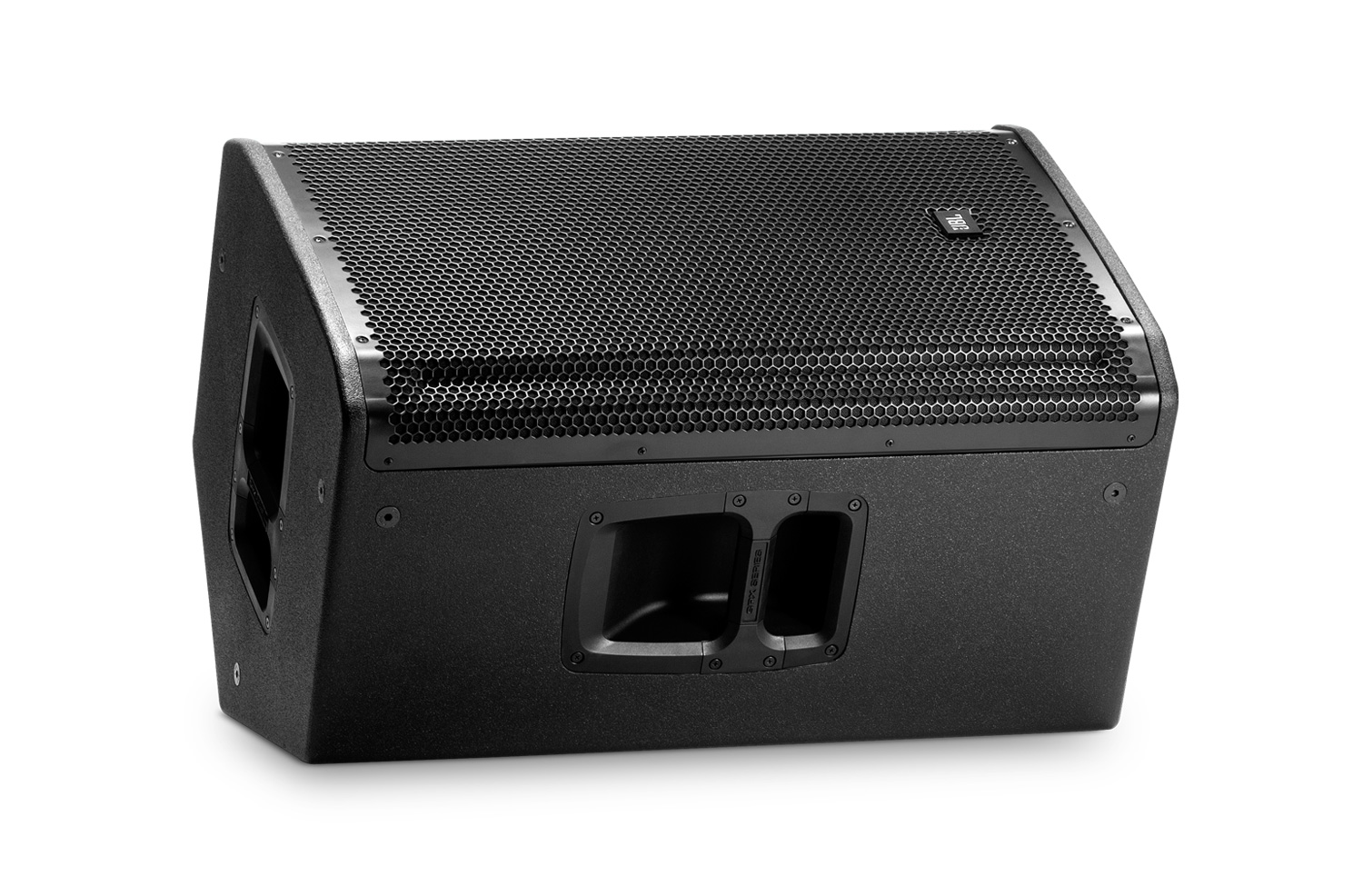

Monitor Angle 50°

Suspension/Mounting Dual 36mm pole socket, 12 x M10 Suspension points

Handles 3

外观颜色 Obsidian Duraflex™ finish

网罩 Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing

尺寸（高 x 宽 x 厚） 478mm x 458mm x 691mm (18.82in x 18.03in x 27.20in

重量 57.0 lbs (25.9kg)

运输重量 67.0 lbs (30.4kg)
